Basic Instructions:

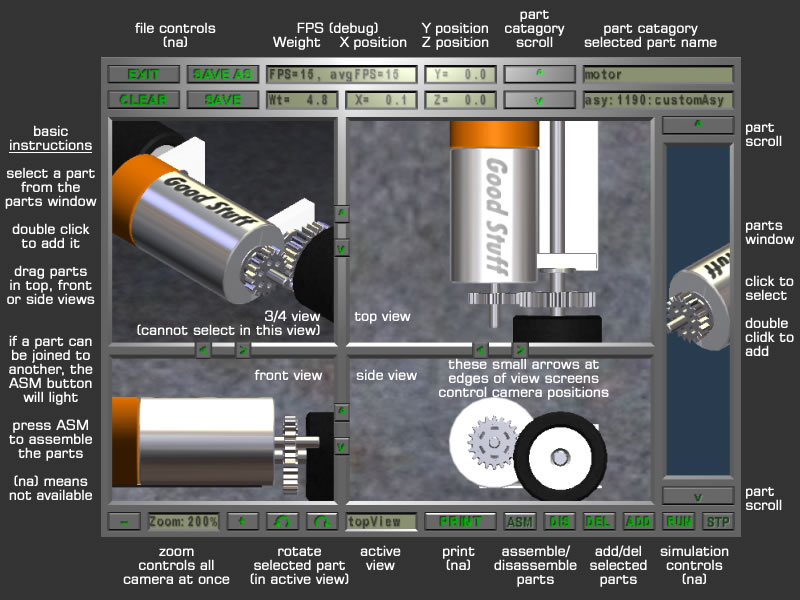

The screen shot below breifly describes functions of the various buttons and displays
Scroll through the part catagories and parts to find the one you want
Double click to add it to the work area where you can drag it around in the top, side and front views
Dragging is not allowed in the 3/4 view as it is very confusing
The selected part may be rotated in the selected view by pressing the rotation buttons

If there are two parts that may be connected (flat surfaces or similar diameter shaft and hole) you may assemble them by dragging one so that it is aligned with the other
When you have aligned them you will here a tone and the assembly button (ASM) will light
Now you may press the ASM button to assemble the parts into a new assembly

The view cameras may be controlled by the zoom buttons and the small arrow buttons at the view edges

PLEASE NOTE: This is a demo of a work in progress and is not complete or tested!
